Our Catalog of Air/Oil Separator Kits, Cleaning Kits and more

Click on a thumbnail image to see a larger product view. Note that all products are made right here in the USA! See page 2 ^ for spare components.



2 inch diameter  billet aluminum kit

sample photo

2-Stage Dual Density Filter Media

High Efficiency 2.0" Diameter Billet Aluminum Air/Oil Separator with brass 3/8" NPT x 3/8, 1/2, or 5/8-inch hose fittings and stainless steel mounting bracket/brass thumb screws (3/8-inch hose fittings are shown in photo.)

Part number: CP04PA012D
Price: Starting at $199.87  + $14.95 (shipping cost)
Dimensions: 6.6 inches tall (hardware included) x 2.0 inches diameter
3.7" width with 3/8" hose fittings installed
Filter element: High Efficiency, Dual Element/Dual Density
Internal pressure range: -29.5" Hg to +60 psi

Note: Reservoir has .3-inch thick bottom (can accommodate 1/8 NPT drain valve)
Warning: Drain as necessary to prevent accumulated liquid height from reaching bottom of filter tube.
Drop down list includes Goodyear or Gates hose (3/8 and 1/2 inch sizes, only)/Breeze all-stainless steel clamps options.
Made in USA

$199.87 (no hose price)

Options



2 inch diameter glass kit

sample photo

2-Stage Dual Density Filter Media

High Efficiency 2" Diameter Glass Reservoir Air/Oil Separator with 3/8 NPT x 3/8, 1/2, or 5/8" hose fittings and 2 stainless steel mounting brackets and brass thumb screws (3/8-inch hose fittings are shown in photo.)

Part number: CP04PA010D
Price: Starting at $147.10  + $13.50 (shipping cost)
Dimensions: 5.3 inches tall (hardware included) x 2.0 inches diameter
3.9" width with 3/8 inch hose fittings installed
Filter element: High Efficiency, Dual Element/Dual Density
Internal pressure range: -29.5" Hg to +30 psi
Warning: Drain as necessary to prevent accumulated liquid height from reaching bottom of filter tube.
Drop down list includes Goodyear or Gates hose(3/8 and 1/2 inch sizes, only)/Breeze all-stainless steel clamps options
Made in USA

Starting at $147.10 (no hose price)



Options

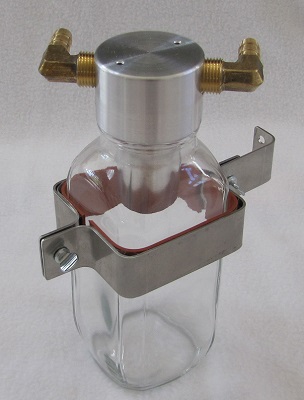

High Capacity 16 oz glass kit

sample photo

2-Stage Dual Density Filter Media

High Efficiency 16-oz reservour Glass Reservoir Air/Oil Separator with 3/8" hose fittings and 2-piece stainless steel clamp assembly with rubber liners and thumb screws.

Part number: CP04PA23D
Price: Starting at $174.00  + $14.95 (shipping cost)
Dimensions: 7.5 inches tall x 3.25 inches wide
Filter element: High Efficiency, Dual Element/Dual Density
Internal pressure range: -29.5" Hg to +30 psi
Warning: Drain as necessary to prevent accumulated liquid height from reaching bottom of filter tube.

Drop down list includes Goodyear or Gates hose(3/8 and 1/2 inch sizes, only)/Breeze all-stainless steel clamps options
Made in USA
Starting at $174.00 (no hose price)
Options

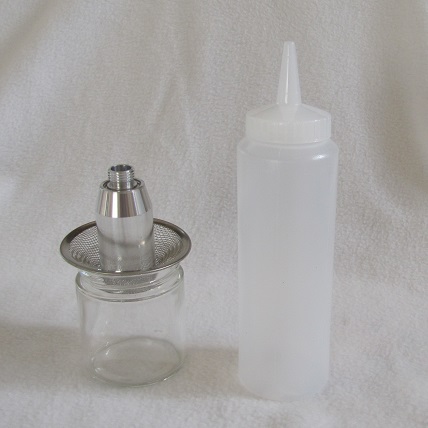

High Efficiency filter cleaning kit

sample photo

Made in USA

Use with Acetone or MAF cleaner
Includes 8 oz dispensor, Wire mesh retainer, and glass fluid containment jar
(Filter tube not included)

Part number: CP04PA024D
Price: $13.00  + $6.00 (shipping cost)




Digital Compound Gauge Kit

sample photo

Made in USA

In the design stage: Digital Compound pressure gauge with range of -29.9" Hg to +29.9" Hg (14.5 psi). Kit will include bracket, power clamps (to battery), tee fitting with tubing/hose to check filter pressure drop

Part number:CP06PA001

Price: To be determined

Dimensions: To be determined





Ultimate Metric thread checker

sample photo

Made in USA

The ultimate thread checker with laser engraved aluminum base, stainless steel thread inserts, 316 stainless steel socket head cap screws, and a stainless steel ruler held in with two super magnets.

Part number:CP05PA001

Price: 40.00 + $6.00 (shipping cost)

Dimensions: 3 inch (76.2mm) diameter
